Main waste rock dump at the Tintic Standard Mine.

Main waste rock dump at the Tintic Standard Mine.

In this post, we will report results and draw conclusions for our study of soil contamination in the Tintic Mining District. This study was supported by a grant from the American Chemical Society.

Students from Walden School of Liberal Arts brought back 42 samples of soils from the area in and around Eureka, Utah. Our purpose was to test for heavy metal contamination, especially lead. Previous tests done by the Utah Department of Health and the EPA showed lead contamination to be widespread throughout the town, due to the presence of historic concentration plants in the town and the use of mine waste rock as fill in many lots. Since there are mine dumps on the hillsides south of town, rain runoff also brought lead contamination into the residential areas.

Western side of the Swansea Consolidated mine dump near SIlver City.

Western side of the Swansea Consolidated mine dump near SIlver City.

These tests led the EPA to declare the town a Superfund project and spend $26 million to replace soils in some areas of town (but not all). They also placed limestone riprap over the mine dumps to prevent further runoff. The process took ten years and completely changed the look of the town, damaging or destroying several historic landmarks along the way, such as the headframes for the Eureka Hill and Gemini mines. Two landmarks, the Bullion Beck headframe and the Shea building, were restored. The rest have been left in ruins.

Middle section of the Swansea Consolidated mine dump near Silver City.

Middle section of the Swansea Consolidated mine dump near Silver City.

All of the tests we conducted were put into numerical form and entered into a spreadsheet so that we could compare the results. We used an ALTA II reflectance spectrometer to measure reflected light at eleven wavelengths, including four infrared wavelengths. We also tested the pH of the samples using several methods, including universal test strips, a garden soil test kit, and a pH meter. We tested for lead using a sodium rhodizonate solution, which changes from orange-red to pink in the presence of lead in neutral soils and to green or blue in the presence of lead in acidic soils. Please see our previous post for details on these tests. Since the rhodizonate test was qualitative, we assigned numbers depending on the color of the final solution so that some comparison could be made.

For the samples, we selected ten areas inside the town of Eureka, including some where the soil has been replaced and others where the soil is original. We tried to pick areas that were representative of the town as a whole. At each site, we sampled the surface soil and soil about six inches below the surface. We also sampled 12 sites outside of town, including areas away from town as controls and areas on or near exposed mine dumps, such as those from the Tintic Standard, Swansea Consolidated, and Tesora mines. We also took samples from gullies or washes downstream from mining areas and dumps, and from an exposed ore body (which has not been mined or processed) at a road cut along U.S. Highway 6.

Test Results:

Chart 1: Comparing Different pH Tests of Soil Samples. The readings taken with our portable pH meter provide the most consistent results (and can be done easiest in the field).

Chart 1: Comparing Different pH Tests of Soil Samples. The readings taken with our portable pH meter provide the most consistent results (and can be done easiest in the field).

As you can see from Chart 1 shown here, of the different methods we used to determine the soil pH, the pH meter was the most sensitive and consistently accurate. It was also easiest to use. It showed that most of the samples, were slightly acidic (between 6 and 7), but the samples taken from mine dumps and the areas immediately downstream were extremely acidic; in fact, some samples had a pH too low for our meter to read, which had a low limit of 2.5. Although not shown on this chart, the samples taken inside Eureka on our fourth collection trip all showed pHs near neutral (6 – 7).

Our lead test showed no discernable lead inside Eureka, even in soils that had not been replaced by the EPA. This is probably because our test is not sensitive enough for low lead levels. It becomes hard to distinguish the original color of the rhodizonate from the natural color of the soil unless there is enough lead present to create an obvious color change. In Chart 2, low levels of lead correspond very well with neutral pH soils.

Chart 2: Comparing Soil pH with Lead Levels. The lower the pH (more acidic) the soil samples were, the more lead was present with a correlation coefficient of rho = -0.876.

Chart 2: Comparing Soil pH with Lead Levels. The lower the pH (more acidic) the soil samples were, the more lead was present with a correlation coefficient of rho = -0.876.

The most interesting result of our study was to compare pH with lead levels. Chart 2 shows that the highest lead levels were found on or immediately downstream from mine dumps, which correlated very well with low pH levels with a correlation coefficient of rho = -0.876. Mine dump soils had high lead content and were highly acidic. Of course, this doesn’t imply causality: the high acid doesn’t cause lead, and the high lead probably doesn’t cause the acidity, but if one is present, so is the other.

Chart 3: Comparing Soils at Mine Dumps with Healthy Soil Using the ALTA II Reflectance Spectrometer. Healthier  soils were darker and richer in humus, whereas mine dump soils were pale and yellowish.

Chart 3: Comparing Soils at Mine Dumps with Healthy Soil Using the ALTA II Reflectance Spectrometer. Healthier
soils were darker and richer in humus, whereas mine dump soils were pale and yellowish.

In Chart 3, the reflectance spectrometer tests were inconclusive as far as detecting a signature for lead. We compared the results shown with samples of pure lead, pure galena (lead sulfide), and silver-lead ore. There were no obvious wavelengths that gave a definitive fingerprint for only lead.

The one useful result of the spectrometer tests was to confirm the overall health of the soil samples; those with lower percent reflectance overall were darker, richer, more healthy soils with more plant life growing. The lighter soils had less plant life and higher overall reflectances. The soils at mine dumps were yellowish to light purplish due to the presence of sulfur compounds, and these also had no plant life, lower pH, and higher lead.

Chart 4: Comparing the Levels of Nitrogen, Phosphorus, and Potassium in Soil Samples. The nitrogen and phosphorus tests gave no predictable results, whereas the potassium test showed higher levels of potassium in mine dump soils with high lead content (rho = .687).

Chart 4: Comparing the Levels of Nitrogen, Phosphorus, and Potassium in Soil Samples. The nitrogen and phosphorus tests gave no predictable results, whereas the potassium test showed higher levels of potassium in mine dump soils with high lead content (rho = .687).

Chart 4 shows the tests we conducted on soil nutrients. The nitrogen and phosphorus tests were inconclusive, and are probably due to the poor quality of the garden test kit we used. The potash (potassium) test did show higher potassium in the mine dump soils where lead levels were also highest, although the correlation was only moderate (rho = 0.687).

Conclusions:

A visual inspection of the mine dumps outside of Eureka, Utah in the Tintic Mining District shows that the waste rock and soils are highly contaminated. No plants grow on the dumps or in the gullies immediately below them. They are stained a bright yellowish-orange, and soils in the nearby gullies have layers of red, yellow, and even green. Overall, they are lighter and less rich than nearby soils with plant life. Our tests show that these mine dump soils are acidic and have high levels of lead contamination.

Similar mine dumps were located at the west end of town (around the Gemini and Bullion Beck headframes) and south of town (Chief Consolidated and Eagle and Bluebell mines). If the same pattern of contamination occurred there as what we found in the Swansea, Tesora, and Tintic Standard dumps, then it is likely that the soils downstream in the residential areas of town were also contaminated by lead and sulfur compounds. We did not find evidence of this in our tests of original soils inside town, but our test was not sensitive enough to find the lowest levels of lead. Soil pH throughout the town was slightly acidic, which may indicate sulfur or even lead content. We were not able to get the data from the original EPA tests.

Soil discoloration in the wash west of the main Swansea mine dump at Silver City.

Soil discoloration in the wash west of the main Swansea mine dump at Silver City.

Both pH and potassium content appear to be well correlated with lead content, with pH having a particularly high negative correlation (-0.876). Perhaps pH can be used as a marker, since it is easily measured. Where lead is suspected, a pH reading showing high acidity would indicate a strong possibility of lead. It would be interesting to see if the two measurements decouple as one travels further downstream from the mine dumps along washes and gullies. Do the lead and the acid travel the same distances?

Soil layers showing different types of contamination, in the middle wash downstream from the Swansea mine dump.

Soil layers showing different types of contamination, in the middle wash downstream from the Swansea mine dump.

Much remains to be tested. We have some additional grant funds that we will use to send four samples to an outside lab for detailed element analysis. I also hope to take all our samples to a local university and use an X-ray Fluorescence Spectrometer or Raman Spectrometer to get an accurate and precise readout of the lead levels and other heavy metal content. We need to determine the amount of sulfur compounds in the soils, and how that correlates with pH. We also need to pass our samples through a soil sieve and measure the relative sizes of particles and the amount of humus in each. We should test the mine dump soils to see if plants will grow in them compared to the other samples. Finally, we need to return to the site and collect more samples of other mine dumps, as well as the soils around and downstream from the dumps we’ve already tested. We need to determine how far the lead contamination and acidity travel down the washes and gullies and the extent to which the slope of the land affects this.

As with any field research study, it’s hard to keep all the variables constant. We’ve been careful and consistent with our tests, recording each location and using controlled testing conditions in the lab. But there are factors we can’t control. It could be that the low plant life on the dumps is simply because this is a desert, and plant life takes time to get established after soils are disturbed. The dumps were all dug up and the best materials were transferred to a leaching pile nearby in the 1980s. 30 years is not enough time for climax vegetation of sagebrush and juniper trees, but is enough time for grasses and low brush to grow. In general, soils in the area are poor in nutrients except where higher levels of water (such as in washes or gullies) allow more plants to grow and decay into better humus.

Staining on the asphalt where water draining off of the Swansea mine dump runs over the road near Silver City.

Staining on the asphalt where water draining off of the Swansea mine dump runs over the road near Silver City.

Advertisements

Read Full Post »

Some of the soil samples from the Tintic Mining District

Some of the soil samples from the Tintic Mining District

Although it’s been over six months since we conducted these experiments, I want to report on what we did before moving on to other topics so that these blog posts will be in the right order. So much has happened doing chemistry that I’ve fallen behind on reporting and writing about chemistry and the elements.

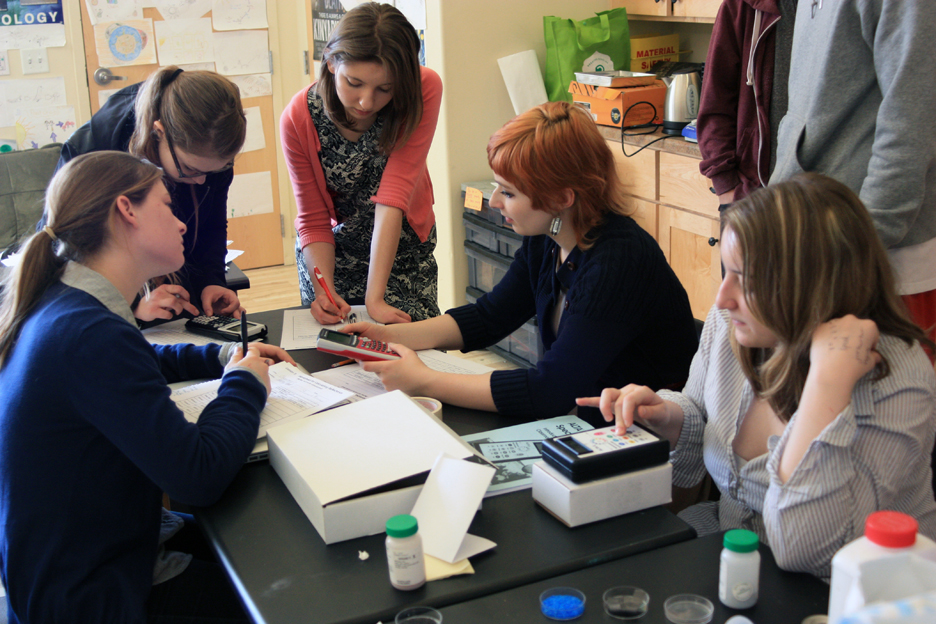

Chemistry students test chemicals with the ALTA II reflectance spectrometer

Chemistry students test chemicals with the ALTA II reflectance spectrometer

During our Intersession class in March, we visited the Tintic Mining District three times in addition to our visit the previous fall. This made four collection trips altogether, and we got 42 samples from over 20 locations. Some of these were from areas inside the town of Eureka, some were outside in areas with heavy mining, such as on or around mine dumps, and some were control samples where no mining has occurred. Our goal was to test these samples for lead and other metal contaminants as well as pH.

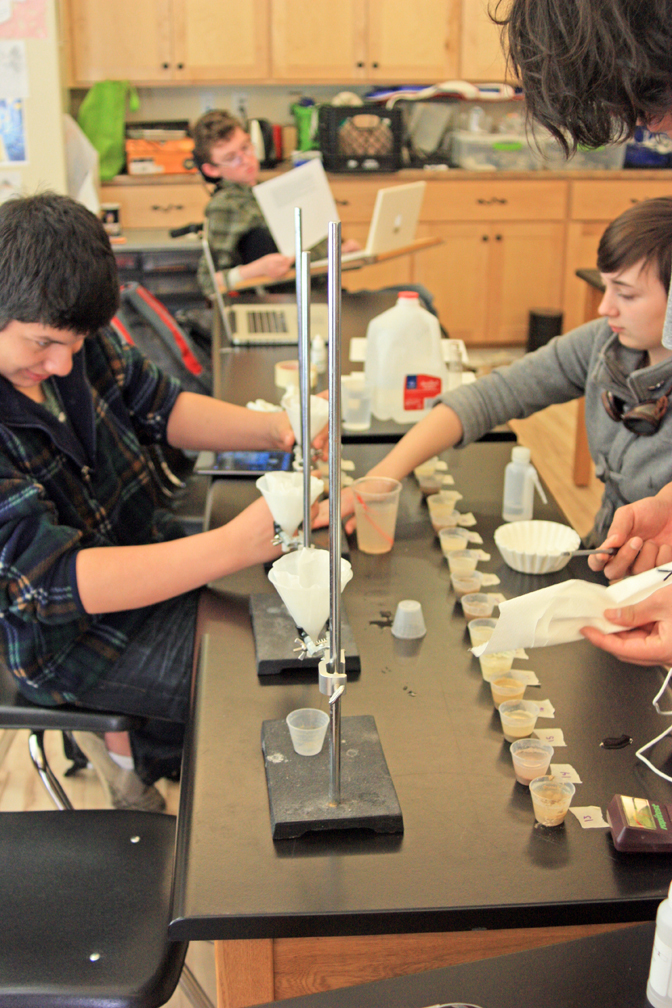

Sean, Jem, Indi, and Jeffrey add water to soil samples

Sean, Jem, Indi, and Jeffrey add water to soil samples

We did this in several ways. First, we took a field pH meter with us to test the soils as we collected the samples. Since most were gathered in March, the ground was damp and the pH meter worked well. The areas around mine dumps showed extremely low pHs (the meter pegged at about 2.5, so the samples were lower still). They also showed the most discoloration, ranging from yellow to purplish colors. These sites also had little or no vegetation.

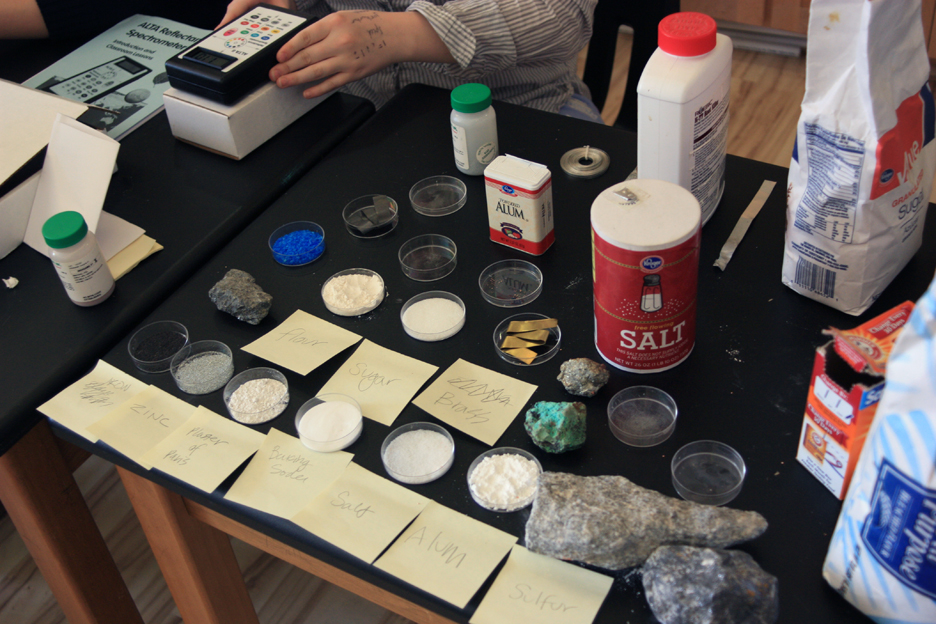

Chemicals and minerals tested by the chemistry students using an ALTA II reflectance spectrometer

Chemicals and minerals tested by the chemistry students using an ALTA II reflectance spectrometer

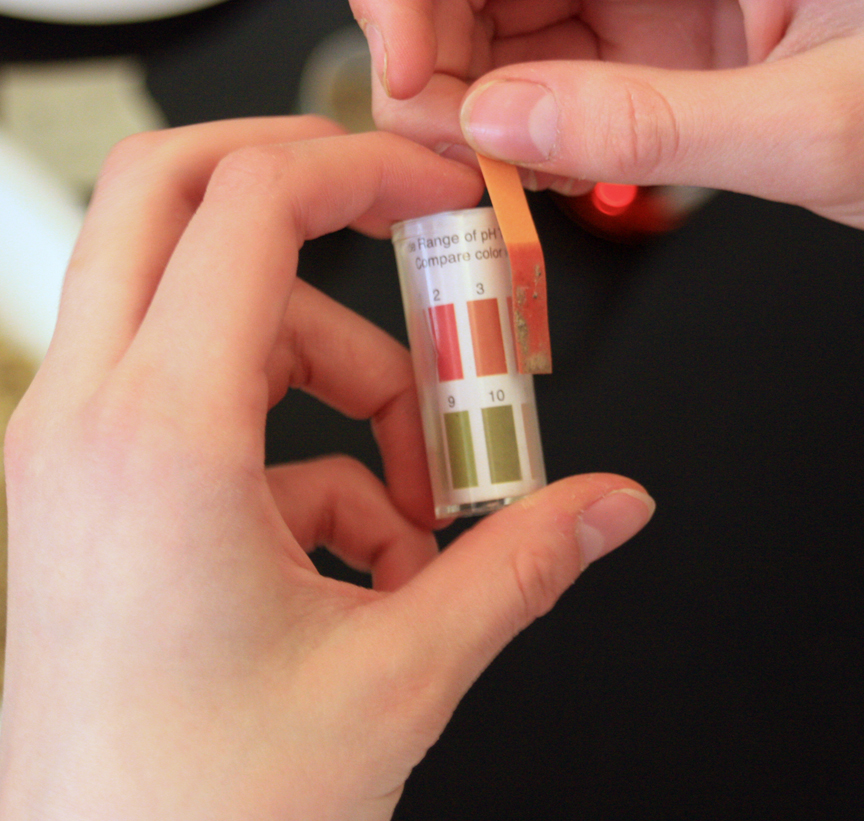

Measuring pH using universal test strips

Measuring pH using universal test strips

Even though the field pH meter worked well, we weren’t sure if it was consistent or reliable given that the soil samples had different amounts of moisture. When we took the samples back to our chemistry lab, we took them out of the Ziploc bags they were in and placed them onto paper plates to dry for several days. Students measured 10.0 g of each and added 25 mL of distilled water, stirring the samples to mix the soil with the water as much as possible. Then we tested each with the pH meter, universal pH test strips, and more specific test strips. We also used a garden soil nutrient test kit that included a pH test where a pill was emptied into the wet sample and color read off of a chart. The various results were set up on the whiteboard as a table, then my student Jem set up a spreadsheet to record and chart all the samples to compare which pH test method was most sensitive and accurate.

Testing for lead with sodium rhodinzonate. The blue color of the second to last sample indicates both lead and acid.

Testing for lead with sodium rhodinzonate. The blue color of the second to last sample indicates both lead and acid.

Another test was to see how much lead was in the samples. Our technique was to use a kit for testing lead in soils using a solution of sodium rhodizonate, which turns from reddish orange to pink in a control solution of lead nitrate. Our samples brought back from our first and second collect trips were tested by filtering out the sediment from the soil mixed with water, then taking the filtrate and adding the rhodizonate solution. Most of the solutions stayed orange, but one turned purplish blue, not pink. It was the sample taken from the Tesora mine dump. This was puzzling until one of my students, Sean, looked up the rhodizonate test and found that it does turn purple-blue if the sample is acidic. When testing its pH, we found it was highly acidic with a pH of 3.0.

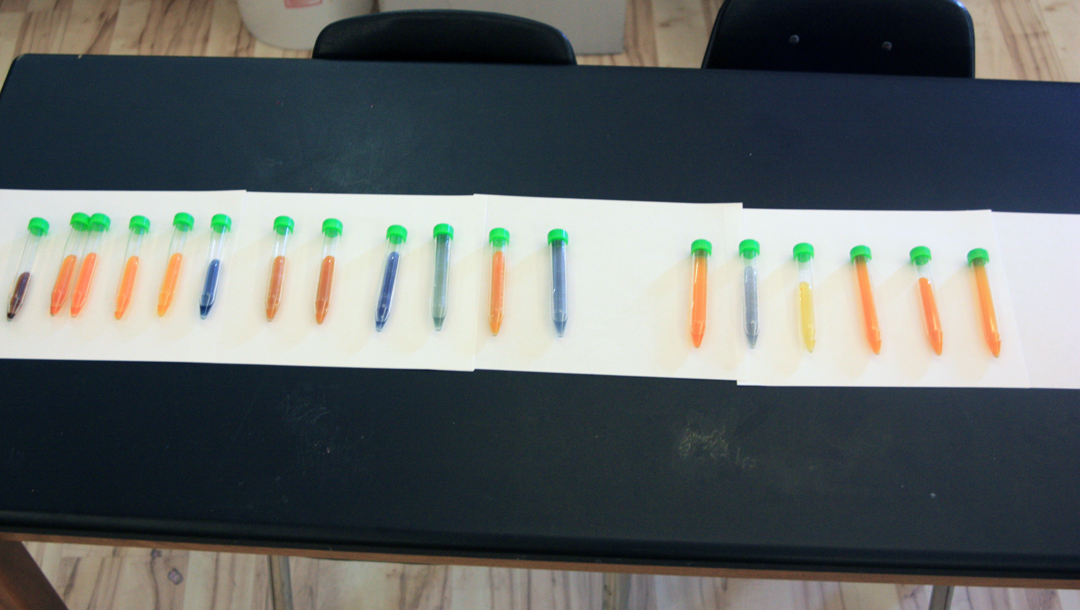

Results of rhodizonate test, with colors ranging from orange (no lead) through yellow (moderate lead) to green and blue (high lead). The test was qualitative, not quantitative.

Results of rhodizonate test, with colors ranging from orange (no lead) through yellow (moderate lead) to green and blue (high lead). The test was qualitative, not quantitative.

We began to see there was a correlation between low pH and lead content. As we repeated the test with other samples, we refined our techniques and came up with a color gauge that provided a rough quantitative scale for the amount of lead present. Most samples, including all from inside town, had a pH of 6.5-7.0 and the rhodizonate stayed orange. Where the pH was a little lower (6.0-6.5 and 5.0-6.0), such as in areas downstream for mine dumps, the rhodizonate turned orange-yellow or yellow. A pH of 4.0 – 5.0 showed a rhodizonate test of light green. A pH lower than 4 showed a test of blue. The correlations between the amount of lead and the acidity of the soil were very strong. We set up a scale of orange equals no to very little lead, yellow a small amount of lead, green a larger amount, and blue the largest amount with numbers 0 to 4. Unfortunately, the rhodizonate test is not specific enough to show actual quantities of lead, and we have no way of knowing if a number 4 (blue) test has twice as much lead as a number 2 (yellow) test. That will have to wait for x-ray fluorescence spectroscopy or some other technique.

Control tests using the sodium rhodizonate solution (on the right). The second to the right shows pink color when the test solution is added to a neutral solution of lead nitrate. It turns purple (second from left) in an acidic solution that contains lead. It produces a white precipitate in a solution basic solution of lead. In the soil samples, lead in acidic soil produced a blue color. When a base was added, a black precipitate formed. All samples with lead present were also highly acidic.

Control tests for lead using the sodium rhodizonate solution (on the right). The second to the right shows pink color when the test solution is added to a neutral solution of lead nitrate. It turns purple (second from left) in an acidic solution that contains lead. It produces a white precipitate in a basic solution of lead. In the soil samples, lead in acidic soil produced a blue color. When a base was added, a black precipitate formed. All samples with lead present were also highly acidic.

We also tested for soil nutrients, including phosphate, nitrate, and potassium. The only correlation was that the soils with higher levels of lead had higher potassium levels overall, but the correlation wasn’t completely certain.

Sean tests for nitrogen in the samples

Sean tests for nitrogen in the samples

I had seen an interesting device demonstrated at a workshop for the landing of the Curiosity rover on Mars where we used reflectance spectroscopy to analyze rock samples representing Martian rock analogs. The ALTA II device uses 11 LED lights on the bottom to shine off of a rock or mineral sample, then a detector shows the relative reflectance of each wavelength, ranging from blue through red to four frequencies of infrared LEDs. Using a white paper and a black paper as controls, the percent of reflected light can be determined and charted. Before Intersession began, I had the chemistry students use the ALTA on a series of chemicals. Some were white but of different substances, some were pure elements, such as copper, tin, lead, iron, and sulfur. Others were alloys such as bronze or compounds such as copper sulfate or minerals such as iron pyrite. I wanted to see if the alloys were an average between the pure elements that made them up, and to see if the infrared reflectance was different even though the visible colors of substances were white.

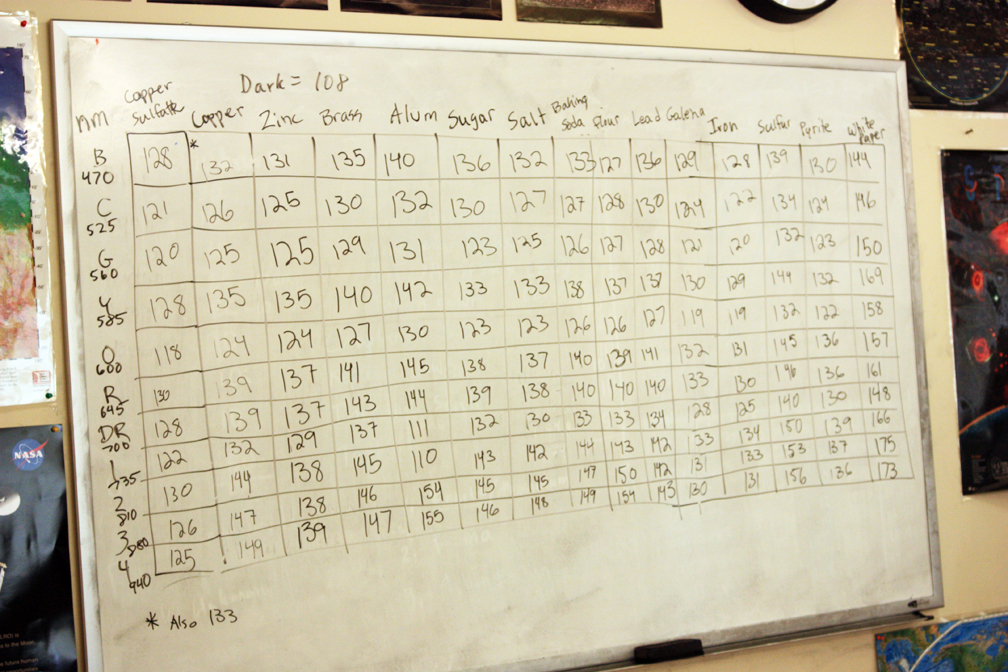

Reflectance spectrometer readings for various chemicals and minerals. There are 11 wavelengths read for each sample, which are compared to the values for white and black to get a percent reflectance.

Reflectance spectrometer readings for various chemicals and minerals. There are 11 wavelengths read for each sample, which are compared to the values for white and black to get a percent reflectance.

We also used the ALTA on each of the soil samples, and the results were fairly predictable in that the richer, loamier soils had lower reflectance at all frequencies (they are darker). The more mineralized and contaminated soils were lighter (more yellowish overall) and high reflectance. Yet the yellow soil didn’t necessarily have higher yellow reflectance – it might have higher green and red, which were combining to make yellow. This spectrometer isn’t specific enough to really give detailed reflection spectrums, which would show spikes at specific frequencies for lead or other elements.

Recording data for the reflectance spectrometer on the Tintic soil samples.

Recording data for the reflectance spectrometer on the Tintic soil samples.

Doing 11 wavelengths of light for 42 samples created a huge data table. We also had all the nutrient, pH, and lead data. Jem set it all up in a massive spreadsheet. Our ten-day class finished before we had the chance to analyze the samples from our final collection trip, so another student, Jeffrey, continued to work on the samples on his own time. By the end of the school year the results were all finalized. I’ll talk about those results in my next post.

Jem enters all the data into a spreadsheet.

Jem enters all the data into a spreadsheet.

Read Full Post »

Mine dump at the Tintic Standard Mine near Eureka, Utah

Mine dump at the Tintic Standard Mine near Eureka, Utah

On Tuesday, March 12, 2013 I took three students down to Eureka, Utah to collect our third set of soil samples for our Amercian Chemical Society grant project. Jeffrey, Sean, and Indie helped to collect samples and measure the soil pHs, as well as explore the history of the Tintic Mining District.

Mine dump with contaminated soils at the Tintic Standard Mine

Mine dump with contaminated soils at the Tintic Standard Mine

This time our first stop was at the old Tintic Standard Mine workings above Burgen and Dividend in the East Tintic District. Of all the ore bodies in the area, these on the east side of the Tintic Mountains were the last discovered and the Tintic Standard Mine was in full production by the 1920s. A reduction mill was built across Goshen Valley at the warm springs near Genola. Workers lived in a company town below the mine called Dividend. The mine produced well into the early 1940s, when it was partly shut down for the war effort, then re-opened. Work continued sporadically into the early 1970s.

I

Collar and shaft at the Tintic Standard Mine. Even with a chain link fence around the hole, the loose soil at the collar could cave in and makes this shaft a dangerous place if you get too close.

There are still quite a few artifacts and ruins at the site, and care must be taken as there is a large vertical shaft with loose dirt around the collar, so you should stay well back from it. There is a large glory hole on the back hill and two water tanks further up, with the remains of a wooden ditch that brought water down to the company buildings and change room. The main portal to the mine went back from the change room, where there is still an old stove to keep the miners warm. That portal has been sealed off.

Stove in the change room at the main portal of the Tintic Standard Mine. This portal was active off and on into the 1970s.

Stove in the change room at the main portal of the Tintic Standard Mine. This portal was active off and on into the 1970s.

After exploring around, we collected some samples from the mine dump at the bottom of the hill where melting snow had created a clayey puddle. We also collected several samples along a trench that had been cut into the waste rock dump, where the soil was discolored with purplish or yellow deposits. The pH indicator needle pegged several times, showing an acidic pH of less than 3.5. It will be interesting to see what kind of lead content these samples have.

Jeffrey and Indie taking samples at the Tintic Standard Mine

Jeffrey and Indie taking samples at the Tintic Standard Mine

We then drove into Eureka and scouted around town for some additional sample sites to collect on our final trip on Thursday, as well as to look around the mining museum, old City Hall building with its jail in back, and the cemetery. I showed the students how miners worked the air-driven hammers and how water was sprayed into the holes through the center of the drill steel. We looked at the skips or man cages, the water removal buckets, and the mucker machine out front. We walked around Main Street, which was very quiet for a Tuesday afternoon. Only a few cars were driving through.

David Black by City Hall on Main Street in Eureka, Utah.

David Black by City Hall on Main Street in Eureka, Utah.

Water chute, tanks, and old foundation at the Tintic Standard Mine

Water chute, tanks, and old foundation at the Tintic Standard Mine

We drove out through the west end of town on Highway 6 and took a detour through the cemetery, recording with the Flip cameras as we went.  We explored around the town of Mammoth and collected samples in a wash at the mouth of Mammoth Canyon. We then went on around to the Swansea mine dumps at Silver City to continue collecting samples.

Ruins of the old power plant in Eureka. Heavy machinery moving through town has contributed to the deterioration of historic buildings like this one.

Ruins of the old power plant in Eureka. Heavy machinery moving through town has contributed to the deterioration of historic buildings like this one.

Since last week, the snow has mostly melted and the ground dried out to where we could walk on it in most places without leaving muddy footprints. We sampled in several washes running off the main dump and in soils between the washes where some scrub brush survives. The main wash feeding off of the dump had several layers of brightly colored soils, ranging from reds to yellows to even a shade of green.

Mammoth Mine, headframe, and glory hole. This was the deepest mine in the district, with the richest concentration of silver and gold ore.

Mammoth Mine, headframe, and glory hole. This was the deepest mine in the district, with the richest concentration of silver and gold ore.

I can see we need to do more studying here, to see how much lead and acidic runoff continue down these washes into the valley beyond. The runoff water has left a red stain on the asphalt of the road over a hundred yards from the main dump. The soil on and near the dump itself and in the bottom of the washes is devoid of life. Even though the last time this mine waste was dug up was the 1980s, when the leach pile nearby was created, no plant life has yet to colonize the contaminated soils in about 30 years.

Sean and Indie at the Silver City mine dump.

Sean and Indie at the Silver City mine dump.

David Black taking pH readings in the middle wash draining the mine dump at Silver City.

David Black taking pH readings in the middle wash draining the mine dump at Silver City.

All told we had an enjoyable and low-key trip, and even though it was overcast the day was fairly warm. We had now collected all the samples we needed outside the remediated zone.

Contaminated soils in the wash draining the Silver City mine dump.

Contaminated soils in the wash draining the Silver City mine dump.

Read Full Post »

Welcome to Eureka sign on U.S. 6

Welcome to Eureka sign on U.S. 6

It’s time to take a break from recounting my tour through Colorado’s mining towns last summer and catch you up on what we’ve been doing this year at Walden School of Liberal Arts.

Maples in the fall near Eureka, Utah - with junipers and rabbit brush.

Maples in the fall near Eureka, Utah – with junipers and rabbit brush.

As mentioned earlier, we received a grant from the American Chemical Society to study lead contamination in the soils in Eureka, Utah and the surrounding area. The grant provided funds for travel, equipment, chemicals, and supplies. It took until early October to receive the money, so our first trip down had to wait until mid-October. It meant we wouldn’t have much daylight, but we’d have to do our best.

Canyon of Fire: Maples in the East Tintic Mountains

Canyon of Fire: Maples in the East Tintic Mountains

I’ve been gradually documenting the history of the area, collecting historical photos, taking photos around the town myself, etc. Back in 2009, I took a group of students with me to interview June McNulty, President of the Tintic Historical Society. He showed us through the museum and we videotaped the tour. Now, with this grant, we can tell the story of recent events in Eureka, especially the history of the EPA superfund project over the last ten years that cleaned up or covered up contaminated soils in the town.

TIntic HIgh School from the Godiva Mine site

TIntic HIgh School from the Godiva Mine site

My science research class researched the history of the area during first term while we were waiting for the grant funds. They identified 20 collection sites outside town using GoogleEarth. Some of these are old mine waste dumps, some are around smelter or concentration plants or leeching piles. Others are control sites outside the district. We were going to collaborate with students at Tintic High School, who were to collect from sites in town. Unfortunately, our collaboration fell through, so my students eventually collected from sites inside the town as well.

Valley of maple trees from a mine dump in the East Tintic Mountains

Valley of maple trees from a mine dump in the East Tintic Mountains

In preparation for our sample collection trips, I traveled down to the area to get some photos of fall foliage on Saturday, Sept. 22. I got there just at the right time, when the maples in the canyons were at their brightest. I photographed some areas along Highway 6 leading into town and filmed the maples in the canyons along the road leading over the top to Dividend. I then took videos around town by attaching a Flip camera to my left rearview mirror with a small claw-style tripod. I drove up to the Godiva mine site and took photos down toward the high school, then drove further up the canyon past the Knightsville site and hiked around some mine dumps further up. I had seen that there was a valley nestled inside the East Tintic Mountains from GoogleEarth and my 3D models of the area. There was a road leading along the edge of the hills, and I walked around as far as the site of the Iron Blossom #2 mine. The headframe there has recently collapsed. It was a nice trip and the photos turned out well. I also saw and photographed several deer.

Doe a Deer: A mule deer  doe in the East Tintic Mountains

Doe a Deer: A mule deer doe in the East Tintic Mountains

Ruins of the Irom Blossom #2 Headframe

Ruins of the Irom Blossom #2 Headframe

I took four students to the area on Oct. 19 and we collected samples and explored the area, including the road over Silver Pass. We first collected from some old evaporation ponds near Elberta where hot water pumped out from the Burgin mines was allowed to cool and settle before discharging it into Utah Lake. During the early 1980s, as I drove home from college to my hometown of Deseret, I would pass through this area and see the water steaming as it passed down the gulley to the ponds. This was the last time they had attempted to open the mines at Burgin. We sampled from two locations inside the old ponds, which can be reached by a short walk from Highway 6.

Collecting samples at the settling ponds near Elberta

Collecting samples at the settling ponds near Elberta

We then collected from the bottom of the wash at the mouth of the canyon leading up to Burgin. The soil here looked healthy and contained a combination of sand and humus. We then stopped at the old Burgin concentrator and took some pictures. I talked with the men at the main office of the Chief Consolidated Mine operations there about getting some samples from the tailings piles (they corrected me when I mentioned “tailings piles” around the headframes themselves and said those rocks were more properly called mine dumps or waste rock; tailings are the actual ore that has been processed).

Silver ore concentration plant at the Burgin mine

Silver ore concentration plant at the Burgin mine

We took photos around the Trixie headframe, then drove on up the canyon over the top of Silver Pass, which I had not done before. This was the opening of the deer hunt, so I didn’t want to venture too far from the road without orange clothing.

Headframe at the Trixie Mine above Burgin.

Headframe at the Trixie Mine above Burgin.

We also collected at a mine dump next to the road in Ruby Hollow, which I later identified as the Tesora Mine. The soil there had a bright yellow color and contained obvious sulfides. Part of the shaft is still there without much protection around it.

Collecting samples at the Tesora Mine dump in Ruby Gulch

Collecting samples at the Tesora Mine dump in Ruby Gulch

I also showed the students Silver City, the leeching pile from the 1980s when much of the waste rock and tailings were heaped up and cyanide solution was sprayed onto it, chelating the silver and gold out of the rocks. We stopped at the Bullion Beck headframe for photos and walked around the Tintic Mining Museum. It was late afternoon by then and time to get the students back.

Waste rock pile at the Swansea Consolidated Mine near Silver City

Waste rock pile at the Swansea Consolidated Mine near Silver City

Altogether we collected six samples from three sites and the students had a chance to get to know the area. I knew that we would have to be more productive on our next trips. Back at school, we did some simple pH tests and found the first two sites (Elberta Ponds and Burgin Wash) were near neutral pH, but the Tesora Mine samples were quite acidic, at a pH of about 3.5. Other tests would have to wait until we ordered the testing supplies.

Historic churches in Eureka, Utah.

Historic churches in Eureka, Utah.

Belt-driven drill press at the Tintic Mining Museum

Belt-driven drill press at the Tintic Mining Museum

Downtown Eureka, Utah: 2012Belt-driven drill press at the Tintic Mining Museum

Read Full Post »

Replacing topsoil Eureka Utah

Replacing topsoil in Eureka, Utah

On my visit to the area around Eureka, Utah last Friday, June 4, I not only wanted to visit Mammoth and Silver City, but to also document the efforts by the Environmental Protection Agency to clean up the town. I had traveled through Eureka a few days before on Memorial Day and noticed that the lawn and soil around the LDS chapel in Eureka was being dug up to a depth of about 18 inches. On Friday, crews were in the process of bringing in new soil in dump trucks and spreading it over a layer of black plastic where the lawns used to be. Normally I wouldn’t have noticed it much – just chalked it up to them putting in a new sprinkler system or something similar. But I knew differently. This was the latest site in an ongoing process to replace the topsoil throughout the entire town, which is a huge undertaking. All the old mine sites throughout the district have left a legacy of environmental contamination and pose a danger to careless explorers who try to enter mine shafts or tunnels or ruins.

Ore dump at Dividend

Ore dump at Dividend, Utah

When silver ore was discovered in the East Tintic Mountains by George Rush in 1869, it ignited a stampede of mining claims that spread throughout these mountains. New deposits were soon located and claimed, and the ore was assayed to be rich in silver, gold, lead, zinc, copper, and other minerals, usually in the form of metal sulfides. The most level sites near the mines quickly grew into the towns of Eureka, Mammoth, Silver City, Diamond, Knightsville, Dividend, etc. These towns were usually as close to the mines as possible so the miners didn’t have far to walk, so that miner’s houses and the mine buildings, hoists, smelters, railroad depots, and city businesses all competed for space in the narrow canyons. Tailings dumps of discarded minerals and slag from the smelters covered the hillsides around and above the town. Dust from these piles was blown by the frequent winds (this is western Utah, after all) and blanketed the whole town. Nobody thought much of it at the time. It was all just part of life in a mining town. But the entire topsoil was contaminated with lead and other metals down to about two feet under the surface.

Limestone rip-rap in Eureka

Limestone rip-rap covering a slope in Eureka, Utah

Downtown Eureka with limestone rocks

Clean-up operations near downtown Eureka, Utah

Today, the EPA has identified the area around Eureka as a SuperFund site, spending millions of federal dollars to clean up the contamination.  One by one, the yards of the residents and businesses are being dug up and the soil replaced, brought in from a staging area east of town. To prevent the tailings piles from blowing more toxic dust around the town, broken limestone rocks called rip-rap are being hauled in from a nearby quarry and are carefully placed to cover over the tailings piles to prevent further erosion by wind and water.

Mine dump in Tintic Mts.

Mine dump in East Tintic Mtns.

The work is progressing throughout Eureka, but the entire mining district has the same problem. Recent exploratory work has dug up the tailings piles in Silver City again, leaving the yellowish sulfides once again exposed to erosion. Many of the mine sites in the hills are owned by small-time private owners who keep the mines open on an occasional basis. They don’t have the resources to prevent the erosion of their tailings piles, and much of the East Tintic Mountains is contaminated just as Eureka itself is.

Old mine shaft

Abandoned mine shaft at Dividend, Utah

Another problem in the area is the many abandoned mine tunnels and shafts. Mines today are required to provide reclamation funds before the mine can even open, but it wasn’t an issue in the 1800s and early 1900s when most of these mines were active. The owners took the ore from the hills, then left all the scars, holes, pits, slag, tailings, and buildings behind when the ore ran out and their companies closed. Now these ruins are a hazard to casual explorers; every year or two someone dies falling down an abandoned mine shaft in Utah. The state has begun a program to close off these mines; to place grates or metal doors in the tunnels and shafts or to blast the entrances closed. Over 8000 mine sites have been closed off throughout the state through this program, but many, many more remain to be done.

Knight Smelter at Silver City

Ruins of the Knight Smelter at Silver City, Utah

Smelting or concentrating the ore brought its own environmental problems. Jesse Knight, the silver magnate that started Knightsville just southeast of Eureka, also built a smelter at Silver City in the early 1900s that operated for about eight years. The foundations of this smelter still remain, as do residual chemicals used to concentrate the ore, including mercury. When I visited the site on Friday, I found a man and his two young girls exploring the site. I suggested that he wash off his girls’ hands and shoes carefully once they were done because the whole site is contaminated with mercury (June McNulty, who runs the Tintic Mining Museum in Eureka, told me that he used to play with pools of liquid mercury metal that would seep into pockets around the smelter).

Knight Smelter

Remains of the Knight Smelter at Silver City, Utah

Right to the south of the old smelter lies a large heap of grayish tailings, now slowing growing a crown of weeds and grass. All the tailings left from the Knight mill were scooped up in the 1980s and placed on a pad with drainage pipes running through the pile, then a solution of cyanide was pumped and sprayed over the pile, leaching its way down through the tailings and chelating with the remaining gold and silver. The ore from these mines has been worked and reworked to get every last fraction of value out of it. But now the pile has been left just like all the other piles around, but with the addition of cyanide. I don’t know if steps have been taken to reclaim the pile, but I wouldn’t want to walk around on it.

Leaching pile at Silver City

Cyanide leaching pile at Silver City, Utah

The efforts to clean up these environmental messes is necessary, but it does come at a cost beyond just money. To clean up the town and make it safe to live in, its essential history and character has been changed.  The heavy equipment moving in limestone and soil has shaken apart a number of fragile historical structures, including buildings, homes, and headframes. Where there were colorful tailings piles slowly returning to nature, there are now carefully constructed fresh piles of gray limestone rocks, an ideal hideout and breeding ground for rattlesnakes (no joke here – I ran over one in my minivan as I was driving up the road to Mammoth). Eureka doesn’t look the same as it did ten years ago.

One can argue that Eureka must be dynamic and capable of changing. It’s not a museum but a living town, and change is part of life. But the historian in me hates to see history destroyed in the process. That is one of the main reasons I’ve started the Elements Unearthed Project and have traveled to Eureka several times in the last few years with my cameras and equipment; as the EPA clean up progresses, the town is changing and I want to preserve what can be preserved of the history before it’s gone forever.

Tailings piles at Silver City

Erosion of tailings piles at Silver City, Utah

The beryllium video second half is progressing well. I’ve decided to do the three episodes on the TIntic Mining Districts next instead of blown glass because It’s fresh on my mind and I now have all the footage and photos I’ll need. My goal is to get the beryllium video done and uploaded by the end of this week, then the Tintic videos by mid-July. Then I’ll start hitting the streets looking for financial sponsorship to continue this project.
