Howardsville

Howardsville, Colorado on the Animas River.

So far on my tour through Colorado’s mining history, I have reported on how the ore was mined. Today, I got the chance to see how the ore was transported and processed at a mill. After completing my tour of the Old Hundred Mine near Silverton, I drove back down Stony Creek to where it joins the Animas River at a place called Howardsville, where some mining operations were still evident.

Arrastra Gulch

Google Earth view of Arrastra Gulch and Silver Lake. The Mayflower Mill is located at the bottom of the gulch in the upper left corner.

I stopped along the way toward Silverton at the base of Arrastra Gulch. This is the location of the main mining area around Silverton and one of the richest deposits in all of the San Juan Mountains. Before a proper mill could be built to process the ores, a Spanish-style arrastra was built here, which is a circular area with a flat stone floor and a central post with arms coming out. Each arm had a heavy stone or iron weight that hung from it and which would drag over the ore and crush it. Mules, donkeys, or even humans would be used to push the arms around in a circle. Once mills were built, the ore was transported to them from Arrastra Gulch and the high glacial circque above it (around Silver Lake) by tramlines or flumes. At one point as many as four separate overlapping trams were operating.

Arrastra Gulch marker panel a

Arrastra Gulch marker Part 1

The largest mill in the area was the Mayflower Mill (also known as the Shenandoah-Dives Mill) about two miles northeast of town. It was built in 1929 to process gold, silver, zinc, lead, and copper ores. Another large mill nearby was the Silver Lake Mill on the Animas River.

arrastra trams

Map of aerial trams in Arrastra Gulch near Silverton, Colorado.

Built of pre-framed Oregon fir and completed in six months for $373,000, the Mayflower Mill began processing ore in Feb., 1930 and continued in operation for 49 of the next 61 years, finally closing down in 1991. It is in fact still capable of operation, and all the original equipment is intact. The historical society allows self-guided tours that start in the machine shop, then move to the tram station, ore storage bins, ball mills, flotation cells, recovery system, assay office, etc.

Arrastra

A restored arrastra in Groveland, California. Heavy rocks were dragged around in a circle to crush ore.

It was an extensive operation, the biggest in the San Juan Mountains, and employed the latest technologies available in 1929, including the new techniques of ball mill crushers, froth flotation of sulfide ores, and recovery of base metals as well as gold and silver. These techniques are still used today in such places as the concentration plant at Utah’s Rio Tinto/Kennecott Copper operation, although the scale there is enormous.

Shenandoah-Dives mine

A sketch showing what the Shenandoah-Dives mine looked like during the 1930s. The aerial tramline connected with the Mayflower Mill.

For its 61 years of operation, it processed over 9,700,500 tons of ore to produce 1,940,100 ounces of gold, 30,000,000 ounces of silver, and over 1,000,000 tons of base metals.

Tramway in Arrastra Gulch

The aerial tramline connecting the Shenandoah-Dives Mine above Arrastra Gulch with the Mayflower Mill. The gulch is the canyon in the foreground, and the high circque is the basin around Silver Lake.

I used my camcorder to create a complete walkthrough of the mill, going in order from start to finish. At each stop I would stop the tape and take photos as well, and took my time to document everything. There were interpretive signs at each stop explaining what each piece of equipment did. Here is a rundown:

Mayflower Mill

The Mayflower Mill near Silverton, Colorado. A self-guided tour is available during the summer.

Processing Ore

The ore coming from the mines was about 5% metals and 95% waste rock (tailings). The metals have to be separated out, and this is done in stages so that all the metals (gold, silver, copper, lead, and zinc – the big five) could be individually removed and purified. This is done in three main steps: crushing, separation or reduction, and purification. The final step was done by a smelter off-site, but the first two steps were done at the mill.

tram station

Tram station at the Mayflower Mill. Full buckets descended from the mine by gravity, which also pulled the empty buckets back up.

The ore arrived in large open buckets by tramline. Gravity brought the ore down and allowed the empty buckets to move back up the loop. The ore was brought into the mill at the tram station and dumped, then transported by conveyor belt to the cone crushers. It was screened for size, and if too big would be returned to the crushers.

cone crusher

Cone crusher at the Mayflower Mill. It would crush the ore between rotating cones until it was pebble sized.

Once it was pebble sized, it would be transported to the Fine Ore Bin, which would hold 1200 tons of ore, enough for one full day of operation. The ore was then transported out of the bottom of the bin and mixed with water to form a slurry, then passed through a rod mill (which used long iron rods rolling around) where the ore was further crushed to a fine powder and sorted by a spiral classifier, an auger-like device that pushed the ore upward. If the ore was fine enough, it was pushed all the way to the top – if not, it would fall back down and be returned to the rod mill for further crushing.

rod mill

Rod mill at Mayflower Mill. Iron rods were fed into the mill, then allowed to roll around inside to crush the ore to the size of sand grains.

The powder, now the consistency of sand, was passed through a ball mill, with 2-3 inch diameter iron balls rolling around to crush the ore even finer. These balls were added frequently during the day through pipes from a ball bin. Now the ore was now the consistency of talc and fine enough to start to separate.

Spiral classifier

Spiral classifier at the Mayflower Mill. Ore slurry from the rod mill would be pushed up the spiral. If it was fine enough, it would be pushed over the top. If not, it would return to the rod mill.

The first metal to be separated was gold, using a system of settling jigs that pumped the ore through, allowing the heavier gold particles to settle out through vibration and suction. The lighter remaining material was passed on to flotation cells, where reagents and flocculents were added that would float the desired metals to the top of the tank solution while depressing or sinking the other metals. Lead was removed first, then copper, and finally silver and zinc removed in large tanks. The soapy bubbles would simply be skimmed off the top of the cells.

Ball mill

Ball mill at the Mayflower Mill. Ore crushed to the size of sand grains would enter the rotating drum and be crushed to powder by 2-3 inch iron balls.

The flotation cell solutions were then passed through filters with pumps that pushed the water through, drying out the solution to a damp cake-like material that was then shipped to a smelter for final refining, where it would be heated to drive off the sulfides. Each day, samples were removed and filtered through a squeeze press, then sent away to an assayer to determine the percentage of metals in each day’s run.

gold jigs

Gold jigs at the Mayflower Mill. Using air pressure, the lighter ore powder was suctioned away from the heavier gold particles.

Meanwhile, the gold filtered out by the jigs was sent through a concentration process. It would be passed over a shaking Deister table where the gold would be caught by riffles and formed a streak to be collected. It was mixed or amalgamated with mercury to remove the gold from the remaining waste ore. The amalgam was then formed into rounded boats or cakes and heated in a retort at 1200 ° F for 12 hours to evaporate the mercury, which was bubbled through water to condense it for reuse. The remaining gold was now called “sponge” and was about 80% pure. It would be sent off to a foundery for final purification. Four to five sponges would be produced each week. Each sponge weighed about 22 pounds. During the last year of the  mill’s operation (1991), a new process was developed that eliminated the need for mercury (which was highly toxic).

Lead cleaner cells

Lead flotation tanks at the Mayflower Mill. Reagents were added that would float the various metals, such as copper or lead, to the top of the liquid on soap bubbles which were skimmed off into the trough in front. The remaining metals were depressed to the bottom. Impellers would keep the solution agitated while blowing air through it.

Once processed, the waste material is called tailings and was made up of water and sandy ground rock. It was pumped down to settling ponds, where the solid tailings would settle out. This was an innovation of the Mayflower Mill, as previously the tailings would simply be allowed to flow into the Animas River. The high sulfur and iron content in the tailings would travel down the river and created the reddish stains on the rocks that I noted on my train trip up the gorge several days ago. At the Mayflower Mill, the ponds were shifted so that the solid tailings would build up a series of mounds downhill from the mill. These have now been collected into a large tailings pile near the mill.

Deister table

Deister table at the Mayflower Mill. It would shake, causing the gold particles to separate out against the riffles.

I found this self-guided tour to be fascinating from a chemistry perspective. The mill used a system of physical separations to crush, concentrate, and amalgamate the ore. The final smelting used a system of chemical separations. It is a perfect example of a chemical engineering process, and was continually upgraded and improved during its 61 years in operation. The mill could be run, during the night shift, with only three people. During the day there were additional people to do repairs and take samples, to run the gold process, and to run the machine shop. Shift supervisors oversaw the operation from the dog house, one man ran the crusher facility, and one man ran the flotation cells. This was the biggest operation of its kind in southwest Colorado and processed more ore than any other mill in the area.

gold sponge

A model of what gold sponge looked like after being removed from the retort furnace. The holes in it are caused by mercury vapor bubbling out.

Retort furnace

Retort furnace and gold button mold at the Mayflower Mill. The gold particles would be amalgamated with mercury, then heated in this retort furnace to drive the mercury off.

Advertisements

Read Full Post »

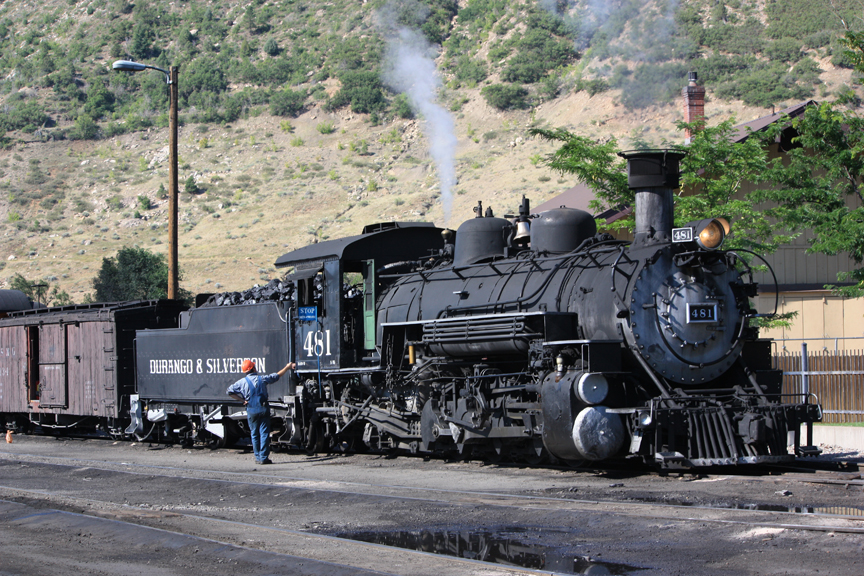

Preparing to leave

Preparing the steam engine to leave in Durango, Colorado

On the second day of my journey through Colorado’s mining towns, I rode the Durango and Silverton Narrow Gauge Railroad. I had reserved a seat in an open gondola on the second train. This is the second time I’ve ridden this train; the first was ten years ago, in 2002, when I took my two oldest children. I had a camera malfunction and could only take a few photos with my daughter’s film camera. This time I was loaded for bear, with my HD video camera and two batteries, two Flip cameras, my still camera, and my iPad, as well as a tripod, panoramic head, and my wireless microphone system. All this was in a backpack which was quite heavy.

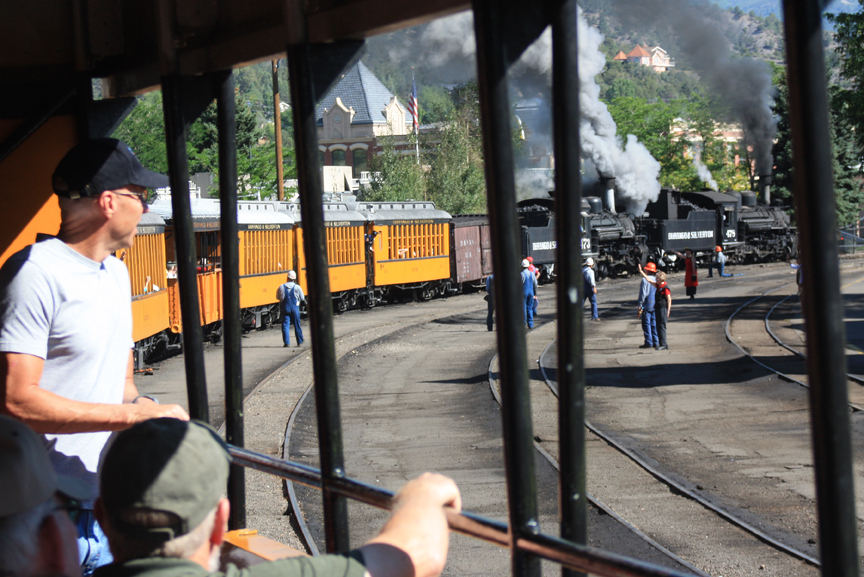

Leaving Durango

Pulling out of the Durango Station on the Durango and Silverton Narrow Gauge Railroad

The D&SNGRR uses authentic steam engines to pull a combination of closed and open cars. The gondola car I was on has a roof and benches facing the sides but no windows – the sides are open to the air (and the soot from the engine). I was in car 30, toward the end of the train, which allowed some great photos as the train pulled around curves.

Durango Colorado

This train follows the actual route and grade laid down to service the mining town of Silverton. Durango was built as a railroad town and hub for the Denver and Rio Grande Railroad in 1881, and a narrow gauge track was built in 1882 along the Animas River from Durango to Silverton, a distance of 45.6 miles. Part of the route was carved out of steep cliffs overlooking the Animas River Gorge, and it is spectacular scenery. Three shorter routes extended on from Silverton into the canyons northward to service the mines and smaller communities.

Railroad sign

Sign describing the railroads around Silverton, Colorado

The route takes three hours each direction. The first hour out of Durango is not very interesting – you gradually work your way north, crossing Highway 550 several times as you travel through trailer parks, along golf courses, farms, and a few towns and tourist traps along the Animas River. As we traveled, we noticed a lady by one of the crossings dressed in Native American costume waving a stick with feathers on it. Then a few miles up the track we saw her again at the next crossing, and again at the next. Either she’s a clone or she has fun every day greeting the trains as they pass, then jumps into her car and drives to the next crossing (the train is quite slow, so this is easy enough to do). I remember seeing her ten years ago doing the same thing.

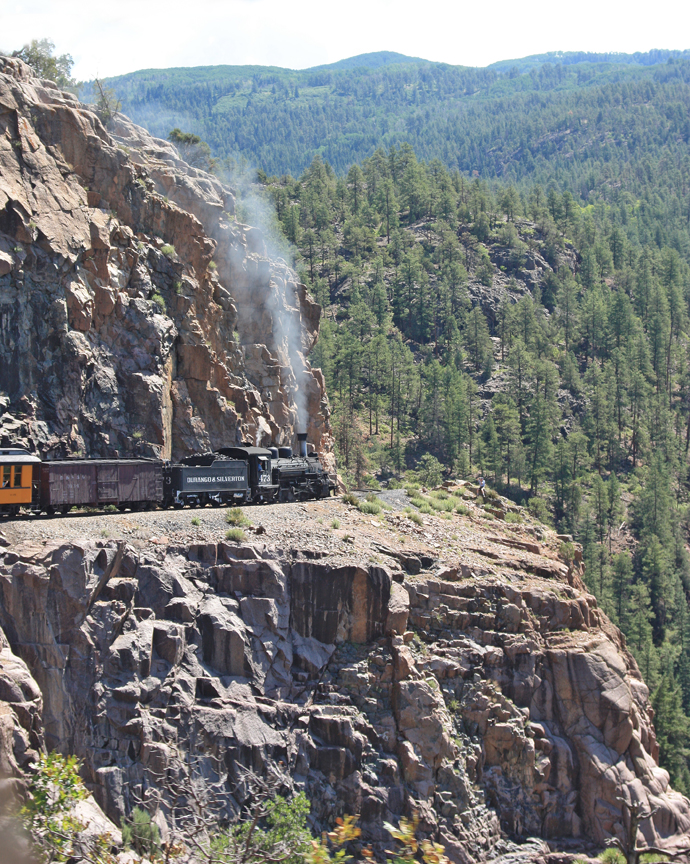

Around the cliff

Chugging along the cliff above the Animas River Gorge

We reached the town of Rockwood and stopped to take on water and to pick up a few more passengers. This is the last town before the gorge. Leaving Rockwood the grade winds its way up the side of the canyon wall, with shear cliffs falling into the swirling river below. The train inched its way around curves, puffing and belching soot and steam. If you’ve seen the movie Butch Cassidy and the Sundance Kid, it is here that Robert Redford and Paul Newman (or their stunt doubles) jumped from the boulder onto the train. It was also here in the gorge where they jump into the river to escape the persistent posse.

Animas River Gorge

The Animas River Gorge. If you were to jump in, the fall would probably kill you . . .

Further up the river the rocks along the edges of the river take on a reddish-orange tint. Some of this is natural staining from iron sulfate deposits further up stream. The silver ore was associated with these same deposits and years of smelters and concentration plants, along with exposed tailings piles, have added greatly to the stain.

I videotaped much of our journey and tried to narrate some of it, but there was too much noise even for the wireless microphone. I talked with other passengers. One had gotten a teaching credential from San Jose State in science education the year after I went through the program. I also walked between the cars with a Flip camera and got some good footage. As the valley opened up just before Silverton, a stray gust of wind blew my hat off and out of the gondola.

Staining along the river

Iron sulfate staining along the Animas River near Silverton, Colorado

In Silverton, I walked with my heavy backpack over to the depot office to see if the chase car that follows the train (just in case the steam engine lights any fires) could look for my hat. I ate a buffet lunch, then used my panoramic head to get some panoramas from the center of the streets in Silverton. I also videotaped the first train pulling out, our train using the triangle tracks to turn around and back into the station, then got some great footage of the train blowing off steam. We boarded about 3:00 and left at 3:15.

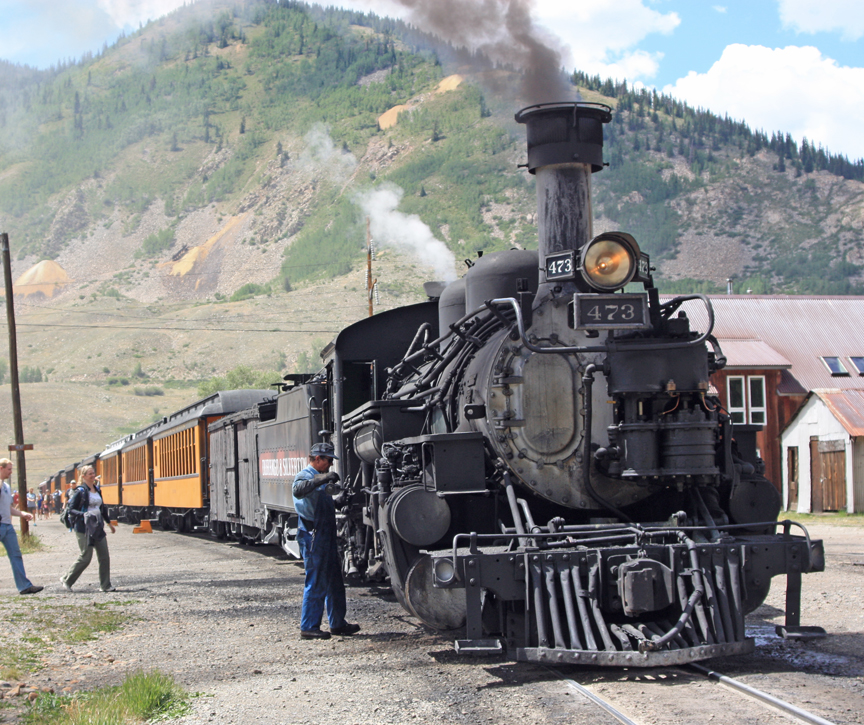

Oiling the engine

Oiling the engine in Silverton, Colorado

On the way back to Durango I saw my poor hat lying right beside the river, but there were no good landmarks to locate it by. It never was recovered. And I liked that hat . . . I used up all the batteries on my HD camera, filled two SD cards on my still camera and used the batteries up for that as well (I wasn’t able to get them completely recharged this morning), and filled up most of the Flip cameras. Inching along the gorge, I was on the outside this time and got some great shots (I hope) of the train and the gorge below, with my last battery dying just as we got to Rockwood. From there on I dozed as best I could on the uncomfortable bench with the constant rocking of the car. We arrived back in Durango about 6:30.

stagecoach

Stagecoach in Silverton, Colorado

Back at Lightner Creek Campground, it was raining slightly and I did the best I could to charge up my camera batteries by wrapping the cameras in plastic bags and setting them on a camp chair to keep the rain out. I had set up my tent that morning, so I called home while waiting for the rain to end, made supper, read a book on my iPad, and enjoyed a comfortable evening.
